Structural Foam Injection Molding Malaysia
Structural Foam Injection Molding Malaysia
Professional Tools & Dies Sdn Bhd (PTD) provides structural foam injection molding as a specialised service under its precision plastic injection molding capabilities in Butterworth, Penang.
This process is the preferred solution for large, thick-walled plastic parts that require high rigidity without excessive weight, parts that conventional injection molding cannot economically or structurally produce at scale.
What Is Structural Foam Injection Molding?
Structural foam injection molding is a low-pressure process in which a blowing agent (typically nitrogen gas or a chemical blowing agent) is introduced into the molten thermoplastic resin before it is injected into the mould tool.
As the material fills the cavity and pressure drops, the blowing agent expands and creates a cellular, honeycomb-like foam core throughout the interior of the part. The outer layer of the part, in contact with the mould wall, solidifies rapidly under lower pressure to form a smooth, dense skin.
The result is a finished part with:
- A solid, rigid outer skin
- A lightweight cellular foam interior
- Significantly reduced weight compared to an equivalent solid injection moulded part
- High stiffness-to-weight and strength-to-weight ratios
This structure is why the process is called structural foam, the foam core is not decorative or incidental; it is load-bearing and contributes directly to part rigidity.
How the Process Works
- Resin preparation – A thermoplastic resin is blended with a blowing agent, either a chemical additive that decomposes under heat to release gas, or an inert physical gas such as nitrogen introduced directly into the melt.
- Injection – The blended melt is injected into the mould cavity at lower pressure than conventional injection moulding. The mould is typically not filled completely at injection.
- Expansion – As the material enters the cavity and pressure drops, the blowing agent activates and the gas expands, pushing the resin uniformly into all cavity features.
- Skin formation – The material in contact with the cooler mould wall solidifies first, forming the dense outer skin. The interior remains molten longer and foams as the gas continues to expand.
- Cooling and ejection – The part cools and solidifies throughout. The foam core becomes rigid, and the part is ejected with a stable cellular interior and a solid outer surface.
Key Process Characteristics
| Parameter | Structural Foam Molding | Conventional Injection Molding |
| Injection pressure | Low | High |
| Wall thickness | Typically 4.5 mm to 12.7 mm | Typically 2 mm to 5 mm |
| Part weight | 10% to 30% lighter | Full material weight |
| Tooling cost | Lower (less clamp tonnage required) | Higher for large parts |
| Surface finish | Dense skin; may show slight texture | Smooth (high-gloss achievable) |
| Warpage / sink marks | Reduced due to low cavity pressure | More common in thick sections |
| Best suited for | Large, thick-walled structural parts | Small to medium, cosmetic parts |
Advantages of Structural Foam Injection Molding
Weight Reduction Without Sacrificing Strength
The honeycomb foam core reduces overall part weight by 10% to 30% compared to equivalent solid-moulded parts, while the integral outer skin maintains rigidity and structural integrity. This high stiffness-to-weight ratio makes structural foam a direct replacement for heavier materials including metal, wood, concrete, and fibreglass in many industrial applications.
Elimination of Sink Marks and Warpage
The low-pressure fill and the internal expansion of the blowing agent compensate for material shrinkage during cooling. This substantially reduces the sink marks and warpage that commonly occur in thick-walled conventional injection moulded parts, making structural foam the preferred process for large panels and housings.
Larger Parts on Lower-Tonnage Machines
Because the process operates at significantly lower cavity pressures, larger parts can be produced on smaller, lower-clamp-force machines. This reduces equipment costs and opens production to a wider range of mould sizes.
Dimensional Stability
The low-pressure process and cellular core produce parts with consistent wall sections and reduced internal stress. Structural foam parts are noted for high dimensional stability, which is important for large enclosures and assemblies where fit and alignment are critical.
Material Flexibility
A wide range of commodity and engineering thermoplastics can be processed using structural foam, including polypropylene (PP), acrylonitrile butadiene styrene (ABS), polyethylene (PE), polycarbonate (PC), PC+ABS blends, and glass-filled variants. Flame-retardant grades are also available for applications with specific flammability requirements.
Environmental Advantages
Structural foam molding can use recycled post-consumer resins without substantially reducing the physical properties of the finished part. The parts themselves are recyclable at end of product life. Combined with reduced material usage per part, this lowers the overall environmental footprint of production.
Cost Efficiency in Production
Lower material consumption per part, reduced tooling investment (aluminium or lower-grade steel tools are viable at lower pressures), and the ability to run large parts on lower-clamp machines all contribute to lower overall production costs, particularly at higher volumes.
Design Considerations
Structural foam molding has specific design requirements that differ from conventional injection molding. PTD’s engineering team works with customers during the design phase to ensure parts are optimised for the process.
Wall Thickness
- Minimum recommended wall thickness: approximately 4.5 mm (0.180 in)
- Optimal nominal wall section: approximately 6.35 mm (0.250 in)
- Maximum practical wall thickness: 12.7 mm (0.500 in) and above, though very thick sections increase cycle time
- Walls below 4.5 mm may not allow sufficient room for the blowing agent to expand and create a cellular core
Ribs, Bosses and Mounting Features
- Ribs and bosses are commonly used in structural foam parts to add localised stiffness and create mounting points
- Moulded-in bosses, pads, and retainers can replace metal brackets, reducing assembly steps
- Wall-to-rib thickness ratios should follow standard moulding guidelines to avoid surface read-through
Draft Angles
- Smaller draft angles can be used compared to high-pressure injection moulding, as lower cavity pressures make part release easier
- For thinner structural foam walls, larger draft angles are still required because higher localised pressures make release more difficult
Transitions
- Wall thickness transitions from thick to thin should be gradual, using radii and fillets rather than abrupt steps
- Gating into thinner sections and allowing flow into thicker areas is recommended practice
Surface Finish
- The outer skin of a structural foam part is dense and smooth to the touch, though slight surface swirling may be visible on some surfaces
- Surface textures applied to the mould tool can mask swirling and improve cosmetic appearance
- Parts can be painted or finished post-mould for additional surface quality
Compatible Materials
| Material | Key Properties | Typical Applications |
| Polypropylene (PP) | Lightweight, chemical resistant, cost-effective | Enclosures, pallets, housings |
| ABS | Impact resistant, good surface quality | Equipment panels, covers |
| PC+ABS | High impact, dimensional stability | Industrial enclosures, structural panels |
| Polyethylene (PE) | Flexible, chemical resistant, low cost | Outdoor products, tanks |
| Glass-filled resins | Enhanced stiffness and rigidity | Structural and mechanical components |
Specialised Techniques in Structural Foam Molding

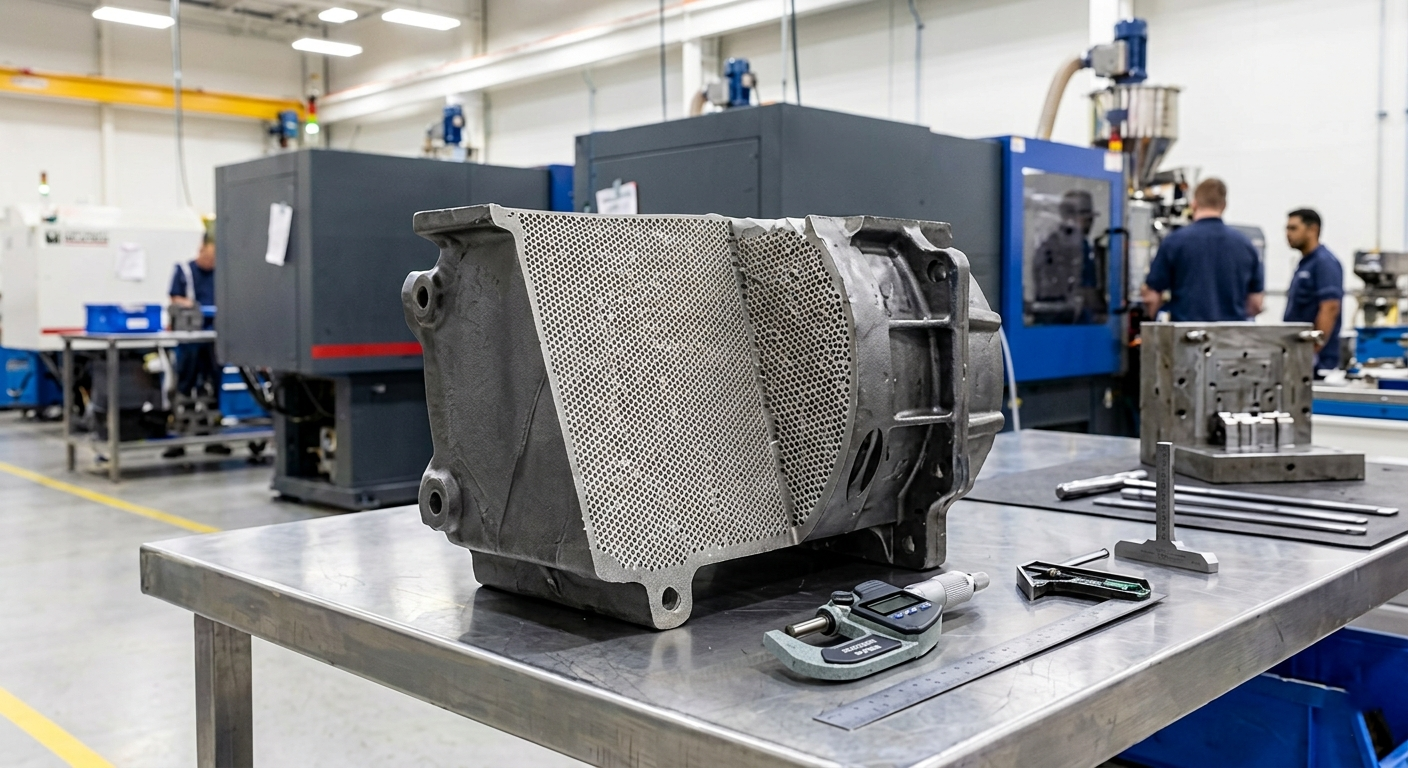

Low-Pressure Structural Foam Molding
The standard form of the process, using low injection pressure and a blowing agent to fill and expand the part. Well-suited for large, thick-walled structural housings and enclosures.
- Cavity pressures significantly lower than conventional molding, enabling larger tools on smaller machines
- Produces parts with a distinct cellular core and integral solid skin
- Cost-effective aluminium or mild steel tooling is viable at these pressures
- Preferred for large-format parts: equipment housings, industrial panels, automotive interior structures
High-Pressure Structural Foam Molding
A variant of the process that uses conventional injection pressures, typically with a mould-opening step after fill. This produces a better cosmetic surface while retaining the weight savings of the foam core.
- The mould cavity is completely filled at high pressure, then expanded to allow foaming
- Produces superior surface finish compared to low-pressure structural foam
- Particularly useful where cosmetic appearance is important alongside the weight and rigidity benefits
- Slower cycle times than low-pressure process but delivers smoother surfaces

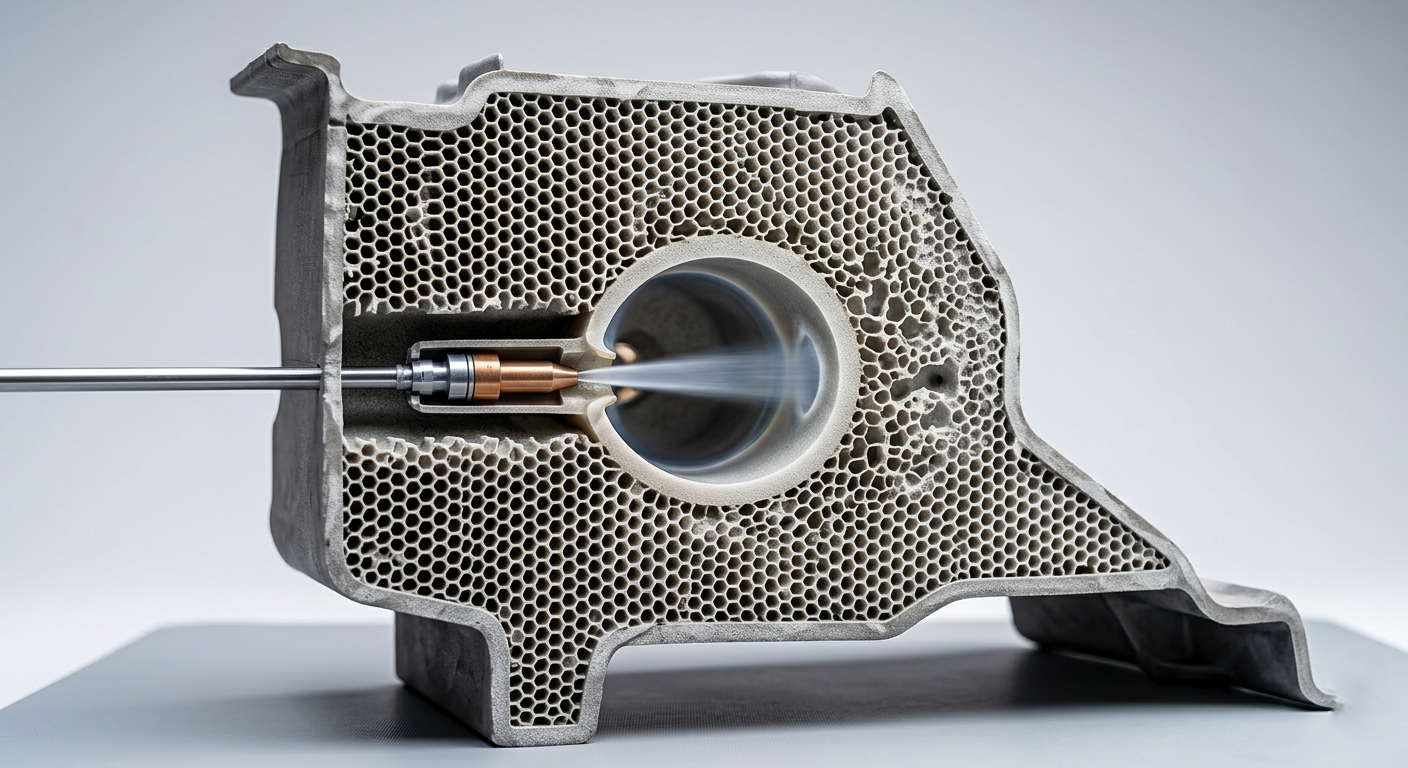

Gas-Assist Combined Process
In some applications, nitrogen gas assist is used in conjunction with structural foam to further optimise large panels. This combination provides hollow channels for additional weight reduction and improved surface quality on visible faces.
- Eliminates surface swirling on show-face areas of large panels
- Creates internal hollow runners that further reduce weight
- Particularly suitable for large automotive exterior or semi-structural panels
Industries Served
Automotive
Industrial Machines
Telecommunications
Consumer Electronics
Oil & Gas
Medical Devices
Sports Equipment
Frequently Asked Questions (FAQs)
What wall thickness is required for structural foam injection molding?
The recommended minimum nominal wall thickness is approximately 4.5 mm, with an optimal wall section of around 6.35 mm. Walls thinner than this may not provide sufficient space for the blowing agent to expand and create the cellular foam core. Thicker walls above 12.7 mm are possible but increase cycle time and add to cost.
How much weight can structural foam molding save compared to solid injection molding?
Parts produced using structural foam molding are typically 10% to 30% lighter than equivalent solid injection moulded parts. The actual weight reduction depends on wall thickness, the resin selected, and the blowing agent dosage.
Does structural foam molding affect part strength?
Structural foam parts maintain high rigidity and stiffness-to-weight ratio due to the integral solid outer skin. While tensile strength is lower than a fully solid part of the same cross-section, the efficient use of material through the foam core means structural foam parts can be designed to be stiffer per unit weight than solid alternatives.
Can structural foam parts be painted or finished?
Yes. The solid outer skin of a structural foam part can be painted, textured, or finished. Mould texturing is commonly applied to improve the cosmetic surface and reduce the visibility of any slight surface swirling inherent to the low-pressure process.
What is the difference between structural foam molding and gas assist injection molding?
Both processes introduce gas into or alongside the melt to achieve weight reduction and eliminate sink marks. In structural foam molding, the gas or blowing agent creates a distributed cellular core throughout the part. In gas assist molding, pressurised nitrogen is channelled through specific hollow passages inside the part. The two processes serve overlapping but distinct design requirements and can be combined for certain large-panel applications.
Can structural foam parts use recycled materials?
Yes. Structural foam molding is compatible with recycled post-consumer resins, and the process can incorporate high percentages of recycled material without substantially reducing the physical properties of the finished part.
How does structural foam tooling cost compare to conventional injection mold tooling?
Because structural foam operates at significantly lower cavity pressures, tooling does not need to withstand the same clamp forces as high-pressure injection molds. This allows the use of aluminium or lower-grade steel tooling, which reduces upfront tooling investment. The cost advantage increases with part size, as high-pressure tooling for very large parts requires substantial steel and high-tonnage presses.
